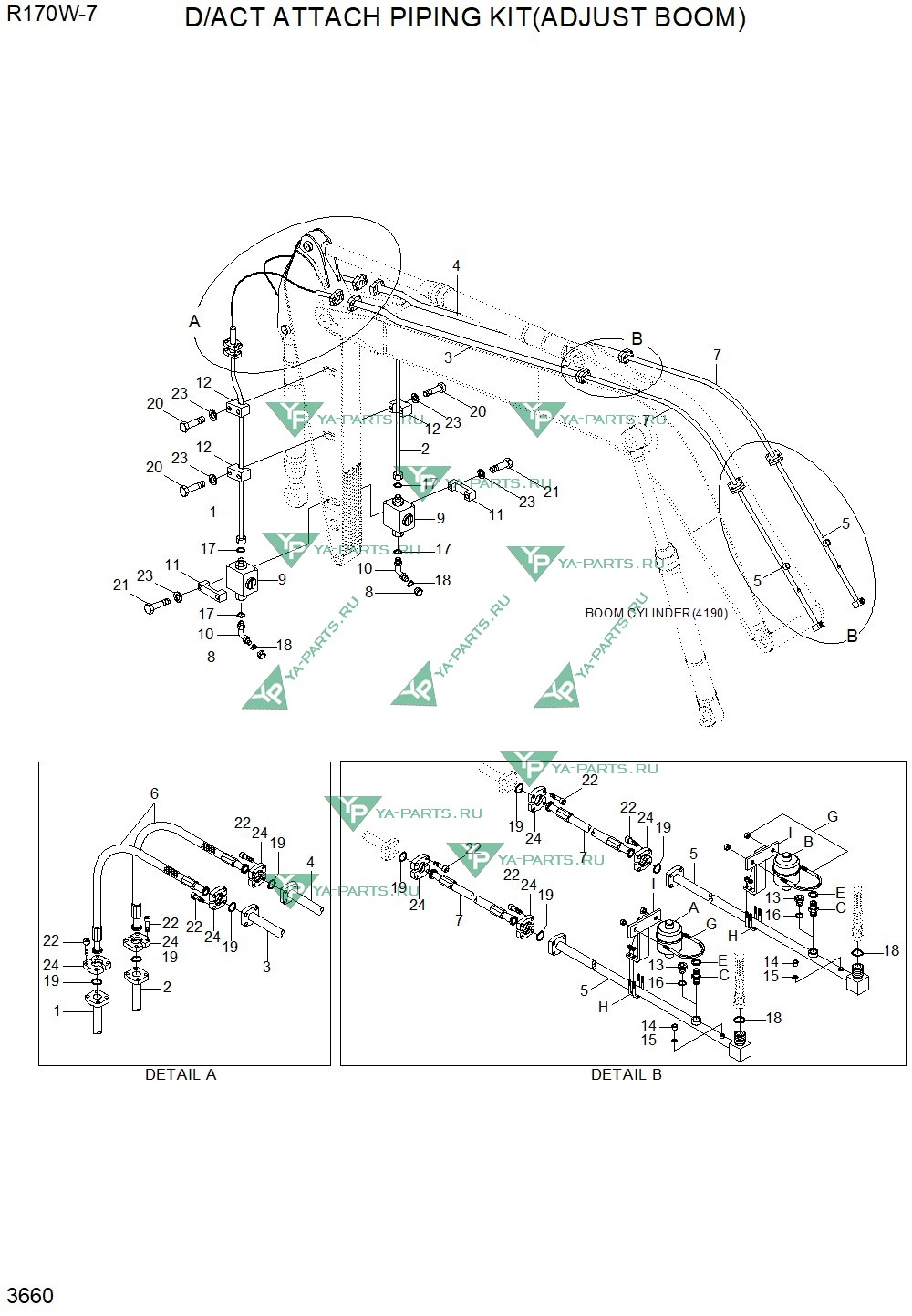

| № на схеме |
Фото |
Описание |
|
|
|
*-12
|
|
HCE-HHI (HYUNDAI) Attach Piping Kit 31N5-91381
|
|
|
*-12
|
|
HCE-HHI (HYUNDAI) Attach Piping Kit 31N5-91361
|
|
|
*-12
|
|
HCE-HHI (HYUNDAI) Attach Piping Kit 31N5-91371
|
|
|
1
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90651
|
|
|
1
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90582
|
|
|
1
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90631
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90661
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90592
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90641
|
|
|
3
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90670
|
|
|
4
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90680
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-90690
|
|
|
6
|
|
HCE-HHI (HYUNDAI) Hose Assy-Flg 0x90 P703-167334
|
|
|
7
|
|
HCE-HHI (HYUNDAI) Hose Assy-Flg 0x0 P680-166323
|
|
|
8
|
|
HCE-HHI (HYUNDAI) Cap-Hyd,Orfs X710-100106
|
|
|
9
|
|
HCE-HHI (HYUNDAI) Valve-Stop 31N6-97010
|
|
|
10
|
|
HCE-HHI (HYUNDAI) Elbow-45,Orfs X530-110005
|
|
|
11
|
|
HCE-HHI (HYUNDAI) Clamp-Stop Valve 31EG-91350
|
|
|
12
|
|
HCE-HHI (HYUNDAI) Clamp-Pipe 31EG-91390
|
|
|
13
|
|
HCE-HHI (HYUNDAI) Plug P220-110205
|
|
|
14
|
|
HCE-HHI (HYUNDAI) Coupling-Screw 31EK-11130
|
|
|
15
|
|
HCE-HHI (HYUNDAI) O-Ring S631-011004
|
|
|
16
|
|
HCE-HHI (HYUNDAI) O-Ring S631-024004
|
|
|
17
|
|
HCE-HHI (HYUNDAI) O-Ring S631-029004
|
|
|
18
|
|
HCE-HHI (HYUNDAI) O-Ring S621-021001
|
|
|
19
|
|
HCE-HHI (HYUNDAI) O-Ring Y171-024004
|
|
|
20
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-120606
|
|
|
21
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-120706
|
|
|
22
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-100406
|
|
|
23
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-120006
|
|
|
23
|
|
HCE-HHI (HYUNDAI) Washer-Copper P392-220000
|
|
|
24
|
|
HCE-HHI (HYUNDAI) Flange-Hyd,Split P173-160104
|
|
