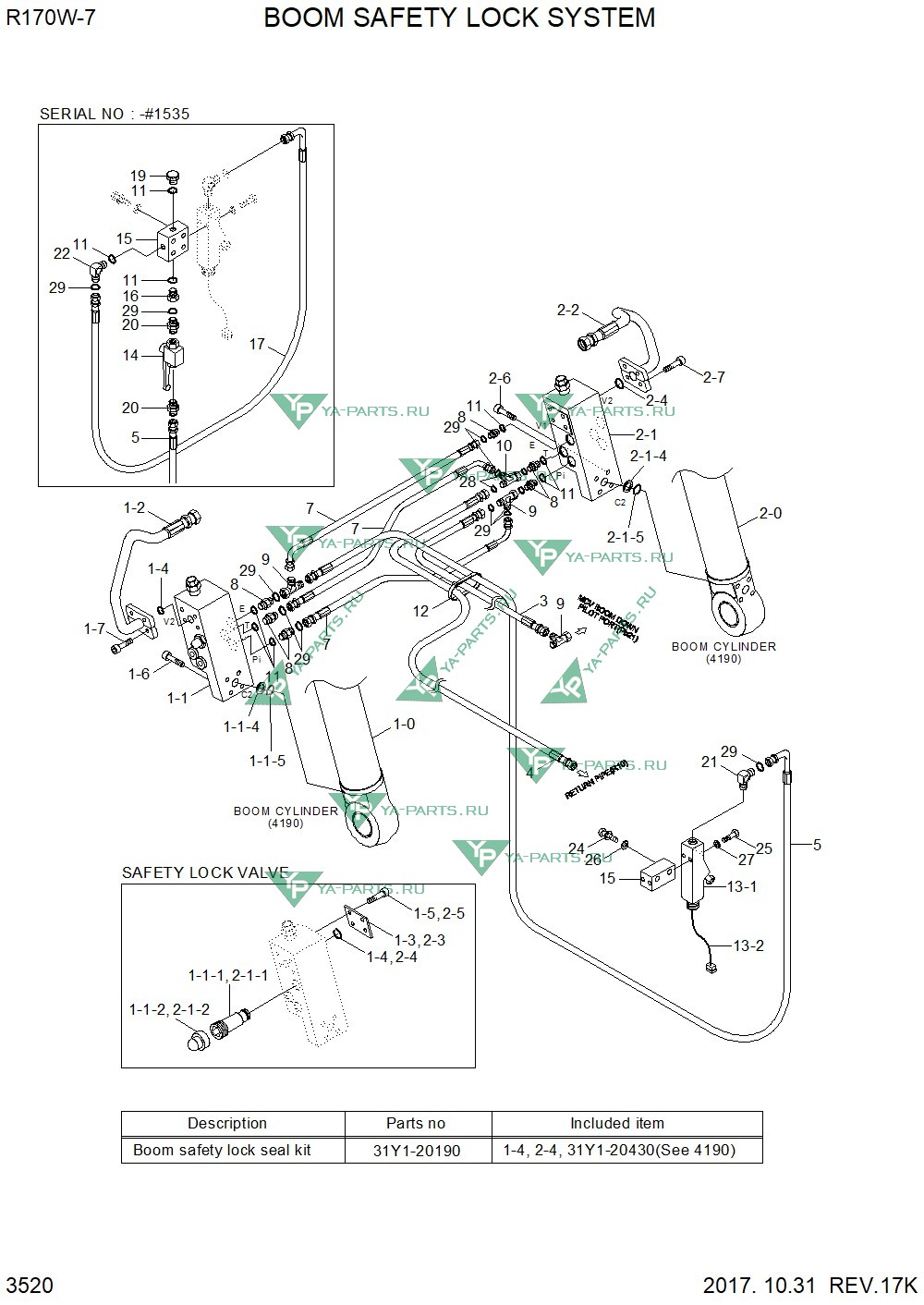

| № на схеме |
Фото |
Описание |
|
|
|
K
|
|
HCE-HHI (HYUNDAI) Seal Kit 31Y1-20190
|
|
|
K2-4
|
|
HCE-HHI (HYUNDAI) O-Ring Y171-019004
|
|
|
1-2
|
|
HCE-HHI (HYUNDAI) Pipe Assy-Bv,Lh 31Y1-24550
|
|
|
1-2
|
|
HCE-HHI (HYUNDAI) Pipe Assy-Bv,Lh 31Y1-20170
|
|
|
1
|
|
HCE-HHI (HYUNDAI) Boom Safe Lock Cyl-Lh 31N5-53911
|
|
|
1
|
|
HCE-HHI (HYUNDAI) Boom Safe Lock Cyl-Lh 31N5-52110
|
|
|
2-2
|
|
HCE-HHI (HYUNDAI) Pipe Assy-Bv,Rh 31Y1-24560
|
|
|
2-2
|
|
HCE-HHI (HYUNDAI) Pipe Assy-Bv,Rh 31Y1-20180
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Boom Safe Lock Cyl-Rh 31N5-53921
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Boom Safe Lock Cyl-Rh 31N5-52120
|
|
|
2-7
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S107-100456
|
|
|
2-6
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S107-100506
|
|
|
2-5
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S107-100354
|
|
|
2-3
|
|
HCE-HHI (HYUNDAI) Flange-Pluging P184-122112
|
|
|
2-1-5
|
|
HCE-HHI (HYUNDAI) O-Ring XKCH-00114
|
|
|
2-1-4
|
|
HCE-HHI (HYUNDAI) Back Up Ring XKCH-00113
|
|
|
2-1-3
|
|
HCE-HHI (HYUNDAI) Seal-Kit XKCH-00004
|
|
|
2-1-3
|
|
HCE-HHI (HYUNDAI) Seal Kit ZTAS-00004
|
|
|
2-1-2
|
|
HCE-HHI (HYUNDAI) Cap XKCH-00174
|
|
|
2-1-2
|
|
HCE-HHI (HYUNDAI) Cap ZTAS-00002
|
|
|
2-1-1
|
|
HCE-HHI (HYUNDAI) Valve-Relief XKCH-00001
|
|
|
2-1-1
|
|
HCE-HHI (HYUNDAI) Valve-Relief ZTAS-00001
|
|
|
2-1
|
|
HCE-HHI (HYUNDAI) Lock Valve-Arm Safety 31NA-90560
|
|
|
2-1
|
|
HCE-HHI (HYUNDAI) Valve-Safety Lock 31N6-90510
|
|
|
3
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P910-042048
|
|
|
3
|
|
HCE-HHI (HYUNDAI) Hose Assy-Thd 0x0 P600-042048
|
|
|
4
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P910-062055
|
|
|
4
|
|
HCE-HHI (HYUNDAI) Hose Assy-Thd 0x0 P600-062055
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P933-047016
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P910-047013
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Hose Assy-Thd 0x0 P600-047013
|
|
|
7
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P933-047009
|
|
|
7
|
|
HCE-HHI (HYUNDAI) Hose Assy-Thd 0x90 P623-047009
|
|
|
8
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110001
|
|
|
8
|
|
HCE-HHI (HYUNDAI) Connector P010-110002
|
|
|
9
|
|
HCE-HHI (HYUNDAI) Tee-R/Type,Orfs X840-515151
|
|
|
9
|
|
HCE-HHI (HYUNDAI) Tee-Swevel Nut 32E6-10460
|
|
|
10
|
|
HCE-HHI (HYUNDAI) Tee-R/Type,Orfs X840-515152
|
|
|
10
|
|
HCE-HHI (HYUNDAI) Tee-R/Type,S/Nut 31M6-51160
|
|
|
11
|
|
HCE-HHI (HYUNDAI) O-Ring S631-011004
|
|
|
12
|
|
HCE-HHI (HYUNDAI) Clamp-Band S552-020102
|
|
|
13-2
|
|
HCE-HHI (HYUNDAI) Harness-Ext 21E5-50230
|
|
|
13-1
|
|
HCE-HHI (HYUNDAI) Switch-Pressure 31E5-50320
|
|
|
13
|
|
HCE-HHI (HYUNDAI) Switch-Pressure 31E5-50325
|
|
|
14
|
|
HCE-HHI (HYUNDAI) Valve-Shut Off 31E5-50330
|
|
|
15
|
|
HCE-HHI (HYUNDAI) Block 31E6-90550
|
|
|
16
|
|
HCE-HHI (HYUNDAI) Adaptor-Swivel Nut 31N4-22180
|
|
|
16
|
|
HCE-HHI (HYUNDAI) Adaptor-Swivel Nut 31E6-90560
|
|
|
17
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x45 P920-047012
|
|
|
17
|
|
HCE-HHI (HYUNDAI) Hose Assy-Thd 0x45 P610-047012
|
|
|
19
|
|
HCE-HHI (HYUNDAI) Plug-Hex P220-110102
|
|
|
20
|
|
HCE-HHI (HYUNDAI) Connector-Orfs 31N5-70460
|
|
|
20
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-120001
|
|
|
20
|
|
HCE-HHI (HYUNDAI) Connector P010-120002
|
|
|
21
|
|
HCE-HHI (HYUNDAI) Elbow-90,Orfs 31N6-90550
|
|
|
21
|
|
HCE-HHI (HYUNDAI) Elbow-90 31E5-50350
|
|
|
22
|
|
HCE-HHI (HYUNDAI) Elbow-45,Orfs X530-110001
|
|
|
22
|
|
HCE-HHI (HYUNDAI) Elbow-45 P030-110001
|
|
|
23
|
|
HCE-HHI (HYUNDAI) Washer-Copper P391-040000
|
|
|
24
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-120556
|
|
|
25
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S015-050456
|
|
|
25
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S015-050402
|
|
|
26
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-120002
|
|
|
27
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-050002
|
|
|
28
|
|
HCE-HHI (HYUNDAI) O-Ring S621-012001
|
|
|
29
|
|
HCE-HHI (HYUNDAI) O-Ring,Orfs S621-011001
|
|
