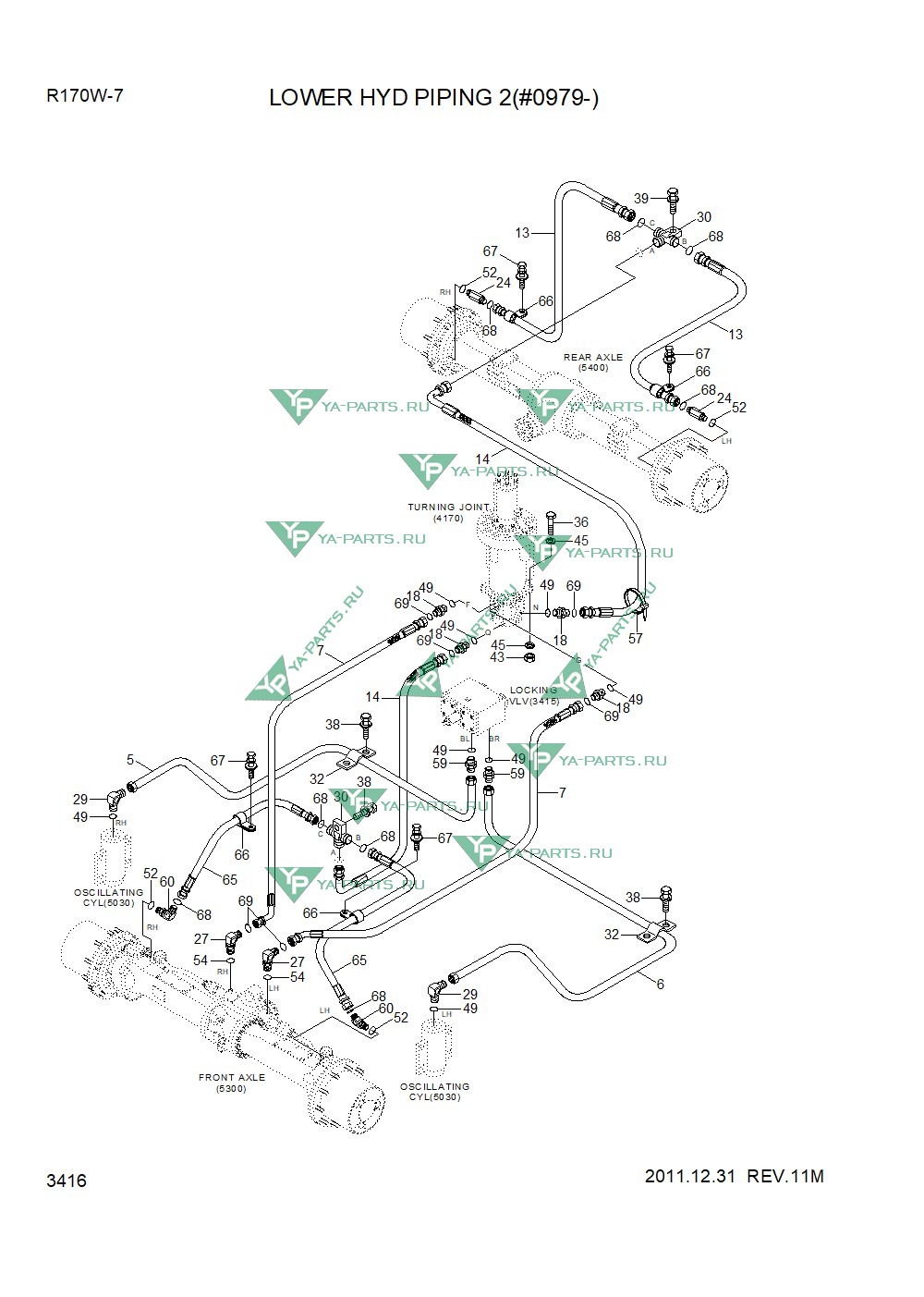

| № на схеме |
Фото |
Описание |
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-40250
|
|
|
6
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-40260
|
|
|
7
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P933-066035
|
|
|
13
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P913-047020
|
|
|
14
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P933-064028
|
|
|
18
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110002
|
|
|
24
|
|
HCE-HHI (HYUNDAI) Штуцер Connector-Long,Orfs X512-114514
| Производитель | HCE-HHI (HYUNDAI) |
|
|
|
27
|
|
HCE-HHI (HYUNDAI) Elbow-90,Orfs X520-210004
|
|
|
29
|
|
HCE-HHI (HYUNDAI) Elbow-90 31E3-3175
|
|
|
30
|
|
HCE-HHI (HYUNDAI) Tee-Mtg 31N5-41030
|
|
|
32
|
|
HCE-HHI (HYUNDAI) Strap 31E4-3097
|
|
|
36
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-120456
|
|
|
38
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S035-081516
|
|
|
39
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S037-103546
|
|
|
43
|
|
HCE-HHI (HYUNDAI) Nut-Hex S205-121006
|
|
|
45
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-120006
|
|
|
49
|
|
HCE-HHI (HYUNDAI) O-Ring S631-014004
|
|
|
52
|
|
HCE-HHI (HYUNDAI) O-Ring Y161-014001
|
|
|
54
|
|
HCE-HHI (HYUNDAI) O-Ring Y161-018001
|
|
|
57
|
|
HCE-HHI (HYUNDAI) Clamp-Band S552-102370
|
|
|
59
|
|
HCE-HHI (HYUNDAI) Connector 31E3-3113
|
|
|
60
|
|
HCE-HHI (HYUNDAI) Elbow-45,Orfs X530-210001
|
|
|
65
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P913-047023
|
|
|
66
|
|
HCE-HHI (HYUNDAI) Clamp-Tube S542-200002
|
|
|
67
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S035-081526
|
|
|
68
|
|
HCE-HHI (HYUNDAI) O-Ring,Orfs S621-011001
|
|
|
69
|
|
HCE-HHI (HYUNDAI) O-Ring S621-012001
|
|
