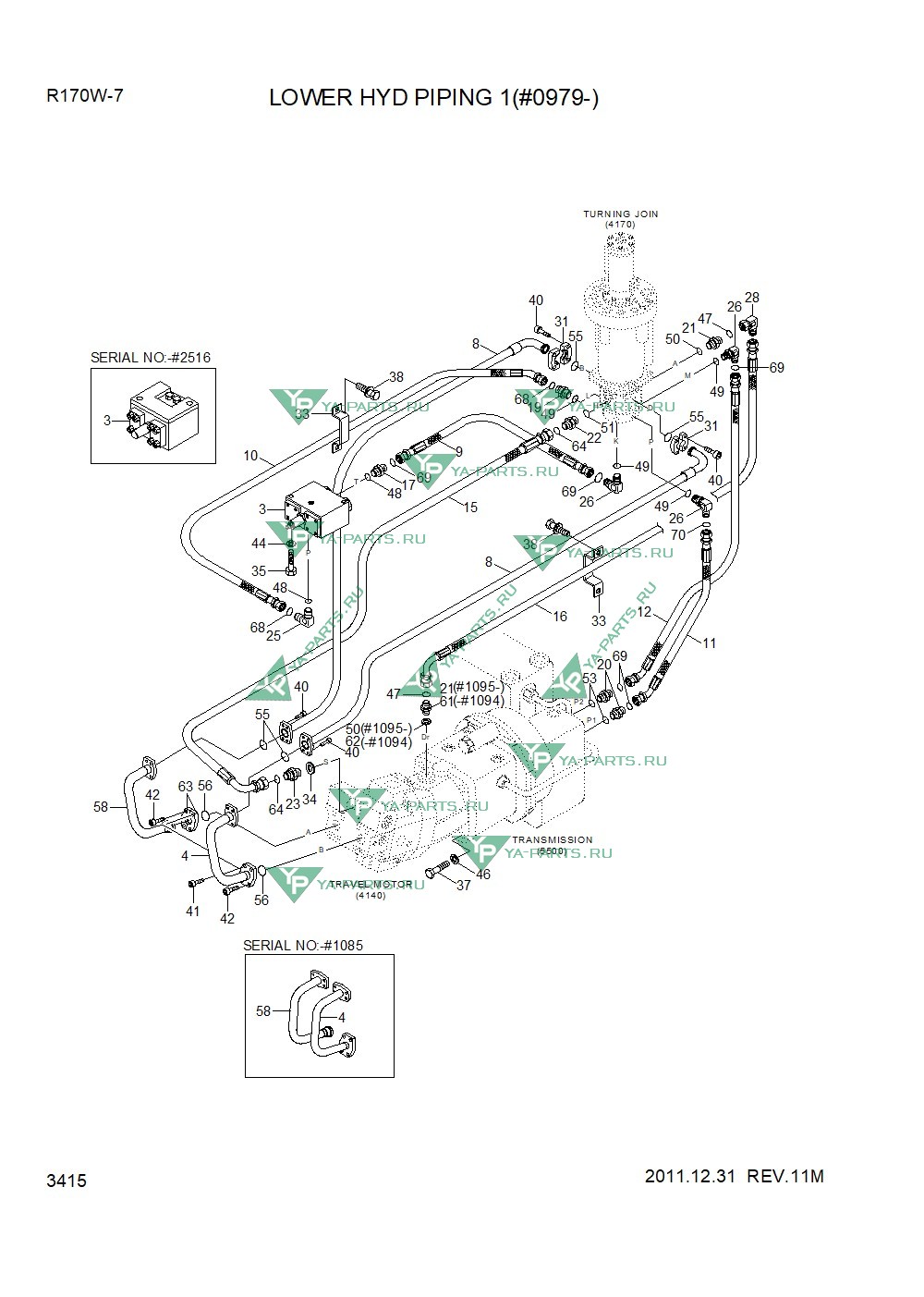

| № на схеме |
Фото |
Описание |
|
|
|
N3
|
|
HCE-HHI (HYUNDAI) Valve-Locking 81E3-0014
|
|
|
3
|
|
HCE-HHI (HYUNDAI) Valve-Locking 31Q4-43610
|
|
|
4
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-41011
|
|
|
4
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-41010
|
|
|
8
|
|
HCE-HHI (HYUNDAI) Hose Assy-Flg 0x90 P703-127315
|
|
|
9
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P913-062020
|
|
|
10
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x45 P923-042026
|
|
|
11
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x45 P923-062011
|
|
|
12
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x45 P923-062013
|
|
|
15
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P933-122018
|
|
|
16
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P933-082017
|
|
|
17
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110011
|
|
|
19
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110013
|
|
|
20
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-210005
|
|
|
21
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110003
|
|
|
22
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110004
|
|
|
23
|
|
HCE-HHI (HYUNDAI) Connector-Orfs 31N4-41080
|
|
|
25
|
|
HCE-HHI (HYUNDAI) Штуцер Elbow-90,Orfs X520-110001
| Производитель | HCE-HHI (HYUNDAI) |
|
|
|
26
|
|
HCE-HHI (HYUNDAI) Elbow-90,Orfs X520-110002
|
|
|
28
|
|
HCE-HHI (HYUNDAI) Elbow-90/Swivel,Orfs X850-535300
|
|
|
31
|
|
HCE-HHI (HYUNDAI) Flange-Hyd,Split P173-120102
|
|
|
33
|
|
HCE-HHI (HYUNDAI) Clamp-Hose 31EK-70400
|
|
|
34
|
|
HCE-HHI (HYUNDAI) Washer-Copper P392-270000
|
|
|
35
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S015-080806
|
|
|
37
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-16050D
|
|
|
38
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S035-081516
|
|
|
40
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-100306
|
|
|
41
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-120406
|
|
|
42
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-121056
|
|
|
44
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-080006
|
|
|
46
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-160006
|
|
|
47
|
|
HCE-HHI (HYUNDAI) O-Ring S621-014001
|
|
|
48
|
|
HCE-HHI (HYUNDAI) O-Ring S631-011004
|
|
|
49
|
|
HCE-HHI (HYUNDAI) O-Ring S631-014004
|
|
|
50
|
|
HCE-HHI (HYUNDAI) O-Ring S631-018004
|
|
|
51
|
|
HCE-HHI (HYUNDAI) O-Ring S631-024004
|
|
|
52
|
|
HCE-HHI (HYUNDAI) O-Ring Y161-014001
|
|
|
53
|
|
HCE-HHI (HYUNDAI) O-Ring Y161-016001
|
|
|
55
|
|
HCE-HHI (HYUNDAI) O-Ring Y171-019004
|
|
|
56
|
|
HCE-HHI (HYUNDAI) O-Ring Y171-024004
|
|
|
58
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-41071
|
|
|
58
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-41070
|
|
|
61
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-220007
|
|
|
62
|
|
HCE-HHI (HYUNDAI) Washer-Copper P392-180000
|
|
|
63
|
|
HCE-HHI (HYUNDAI) Flange-Split P174-160115
|
|
|
64
|
|
HCE-HHI (HYUNDAI) O-Ring S621-018001
|
|
|
68
|
|
HCE-HHI (HYUNDAI) O-Ring,Orfs S621-011001
|
|
|
69
|
|
HCE-HHI (HYUNDAI) O-Ring S621-012001
|
|
