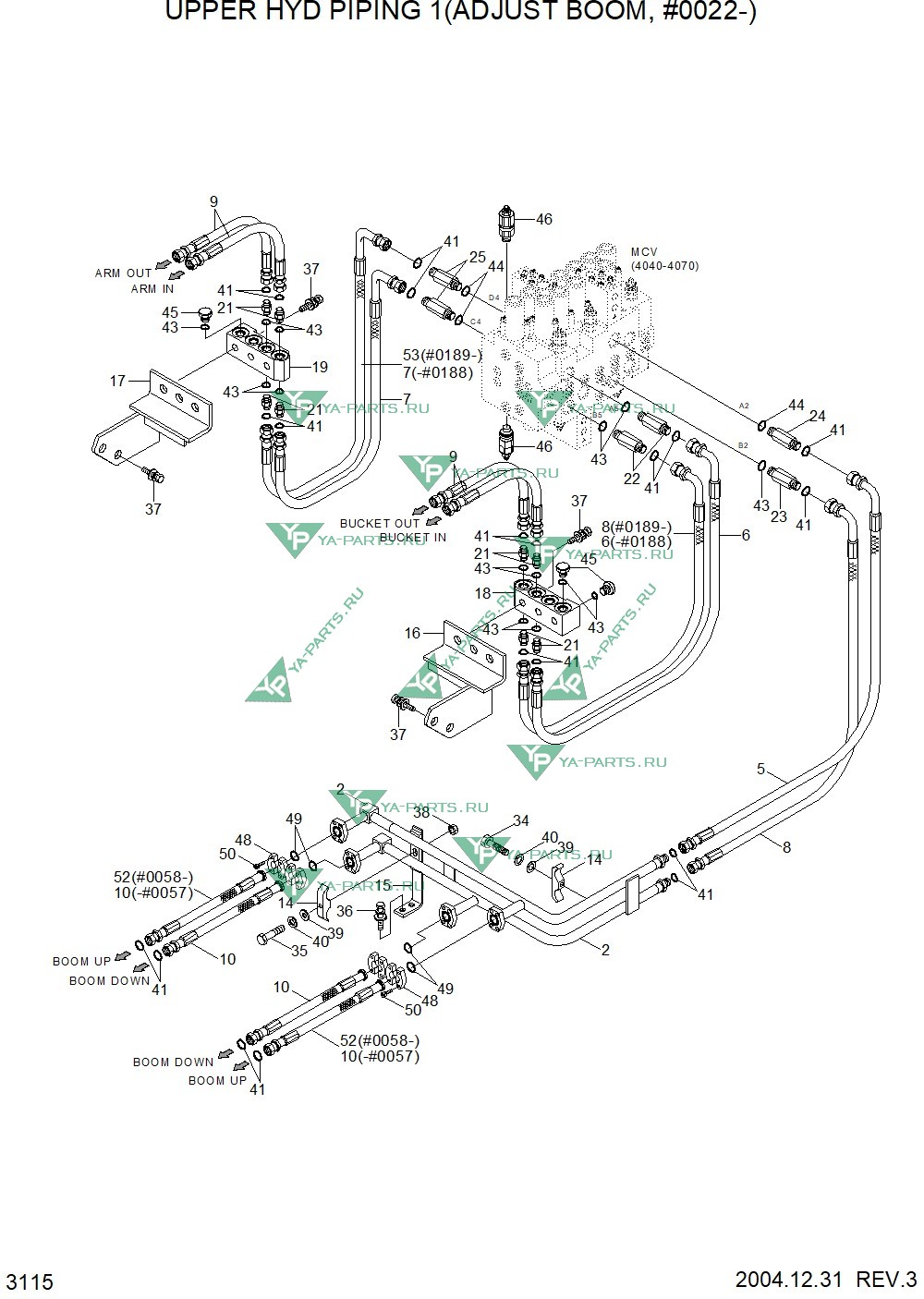

| № на схеме |
Фото |
Описание |
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Pipe Assy 31N5-10312
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P930-127019
|
|
|
6
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P930-127016
|
|
|
7
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P930-127021
|
|
|
7
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P930-127018
|
|
|
8
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P930-127017
|
|
|
9
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x0 P913-127035
|
|
|
10
|
|
HCE-HHI (HYUNDAI) Hose Assy 31N5-10260
|
|
|
14
|
|
HCE-HHI (HYUNDAI) Clamp-Pipe 31N4-12200
|
|
|
15
|
|
HCE-HHI (HYUNDAI) Bracket 31N5-10340
|
|
|
16
|
|
HCE-HHI (HYUNDAI) Bracket-Lh,Manifold 31N5-10380
|
|
|
17
|
|
HCE-HHI (HYUNDAI) Bracket-Rh,Manifold 31N5-10390
|
|
|
18
|
|
HCE-HHI (HYUNDAI) Manifold-Lh 35EA-12500
|
|
|
19
|
|
HCE-HHI (HYUNDAI) Manifold-Rh 35EA-12510
|
|
|
21
|
|
HCE-HHI (HYUNDAI) Connector-Orfs X500-110004
|
|
|
22
|
|
HCE-HHI (HYUNDAI) Connector-Long,Orfs X511-112548
|
|
|
23
|
|
HCE-HHI (HYUNDAI) Connector-Long,Orfs X511-112546
|
|
|
24
|
|
HCE-HHI (HYUNDAI) Connector-Long,Orfs X511-116546
|
|
|
25
|
|
HCE-HHI (HYUNDAI) Connector-Long,Orfs X511-116548
|
|
|
34
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-100602
|
|
|
35
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-100852
|
|
|
36
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S037-103022
|
|
|
37
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S037-123052
|
|
|
38
|
|
HCE-HHI (HYUNDAI) Nut-Hex S207-101002
|
|
|
39
|
|
HCE-HHI (HYUNDAI) Washer-Plain S403-101002
|
|
|
40
|
|
HCE-HHI (HYUNDAI) Washer-Spring S411-100002
|
|
|
41
|
|
HCE-HHI (HYUNDAI) O-Ring S621-018001
|
|
|
43
|
|
HCE-HHI (HYUNDAI) O-Ring S631-024004
|
|
|
44
|
|
HCE-HHI (HYUNDAI) O-Ring S631-029004
|
|
|
45
|
|
HCE-HHI (HYUNDAI) Plug-Hex P220-110105
|
|
|
46
|
|
HCE-HHI (HYUNDAI) Relief Valve-Overload XKBF-00095
|
|
|
48
|
|
HCE-HHI (HYUNDAI) Flange-Hyd,Split P173-120102
|
|
|
49
|
|
HCE-HHI (HYUNDAI) O-Ring Y171-019004
|
|
|
50
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-100306
|
|
|
50
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-100356
|
|
|
52
|
|
HCE-HHI (HYUNDAI) Hose Assy 31N5-53060
|
|
|
53
|
|
HCE-HHI (HYUNDAI) Hose Assy-Orfs 0x90 P930-127020
|
|
