| № на схеме |
Фото |
Описание |
|
|
|

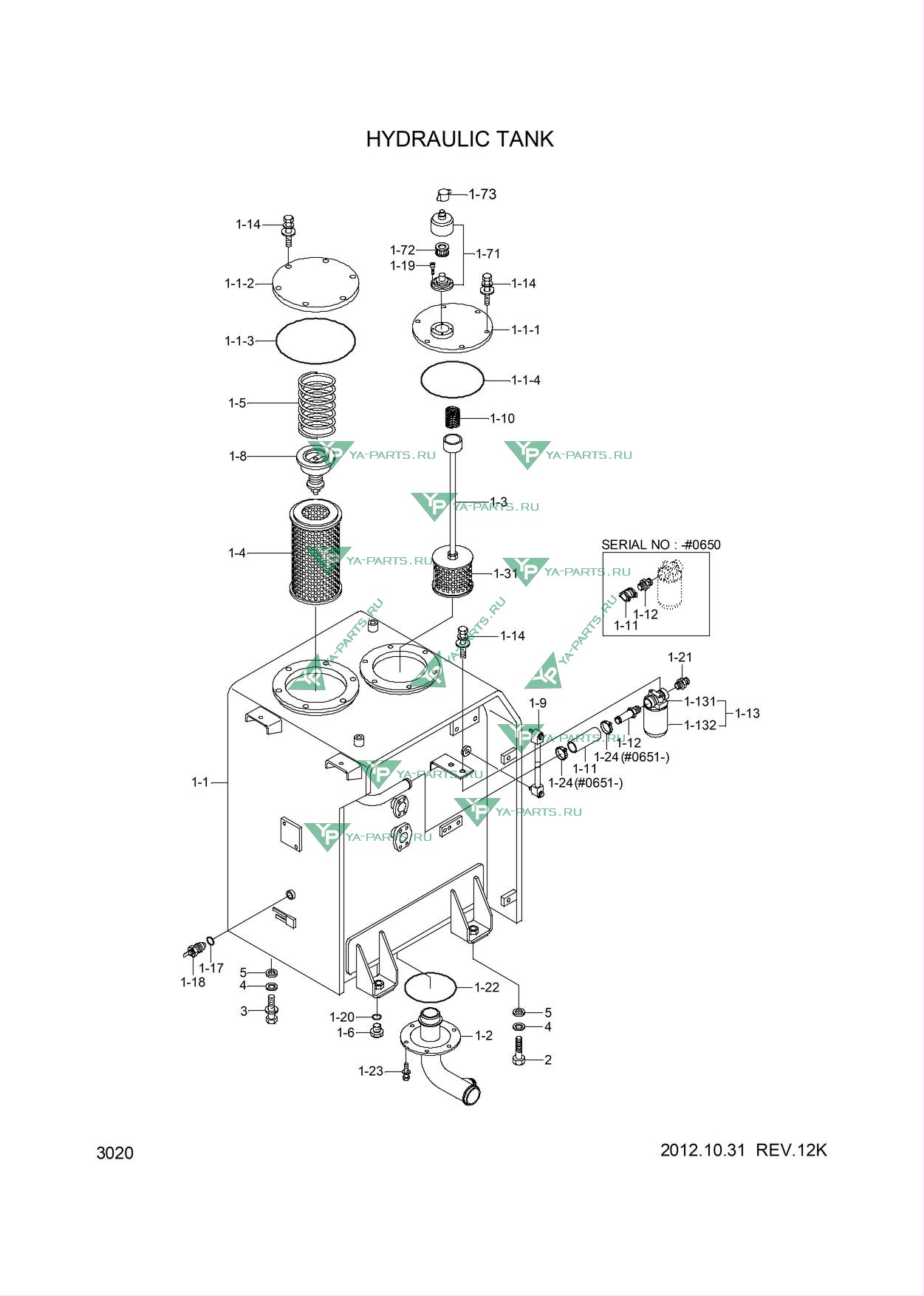

1-1
|
|
HCE-HHI (HYUNDAI) Hyd Tank Wa 31N5-01012
|
|
|
1-1
|
|
HCE-HHI (HYUNDAI) Hyd Tank Wa 31N5-01013
|
|
|
1-1
|
|
HCE-HHI (HYUNDAI) Hyd Tank Wa 31N5-01014
|
|
|
1-1
|
|
HCE-HHI (HYUNDAI) Hyd Tank Wa 31N5-01015
|
|
|
1-1-1
|
|
HCE-HHI (HYUNDAI) Cover-Suction 31EG-01210
|
|
|
1-1-2
|
|
HCE-HHI (HYUNDAI) Cover-Return 31N4-01110
|
|
|
1-1-3
|
|
HCE-HHI (HYUNDAI) O-Ring S632-170001
|
|
|
1-1-4
|
|
HCE-HHI (HYUNDAI) O-Ring S632-165001
|
|
|
1-2
|
|
HCE-HHI (HYUNDAI) Pipe Assy-Suction 31N5-01081
|
|
|
1-3
|
|
HCE-HHI (HYUNDAI) Strainer Assy 31N4-01090
|
|
|
1-31
|
|
HCE-HHI (HYUNDAI) Element-Suction 31E3-4529
|
|
|
1-4
|
|
HCE-HHI (HYUNDAI) Фильтр гидравлический E131-0212
|
|
|
1-5
|
|
HCE-HHI (HYUNDAI) Spring E131-0220
|
|
|
1-6
|
|
HCE-HHI (HYUNDAI) Plug-Hex P220-110104
|
|
|
1-7
|
|
HCE-HHI (HYUNDAI) Breather-Air 31EE-02100
|
|
|
1-71
|
|
HCE-HHI (HYUNDAI) Body PM102-0001R
|
|
|
1-72
|
|
HCE-HHI (HYUNDAI) Фильтр сапуна 31EE-02110
|
|
|
1-73
|
|
HCE-HHI (HYUNDAI) Cap-Nut XKCT-00001
|
|
|
1-8
|
|
HCE-HHI (HYUNDAI) Valve-Bypass E131-0256
|
|
|
1-9
|
|
HCE-HHI (HYUNDAI) Gauge-Level E131-0473
|
|
|
1-10
|
|
HCE-HHI (HYUNDAI) Spring E131-0594
|
|
|
1-11
|
|
HCE-HHI (HYUNDAI) Coupling E131-0671
|
|
|
1-11
|
|
HCE-HHI (HYUNDAI) Hose-Rubber P760-052014
|
|
|
1-12
|
|
HCE-HHI (HYUNDAI) Fitting 31E9-1051
|
|
|
1-12
|
|
HCE-HHI (HYUNDAI) Connector 31N4-01210
|
|
|
1-13
|
|
HCE-HHI (HYUNDAI) Filter-Spin 31E9-0084
|
|
|
1-24
|
|
HCE-HHI (HYUNDAI) Clamp-Hose,Wire Type S572-490006
|
|
|
1-23
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S037-103022
|
|
|
1-22
|
|
HCE-HHI (HYUNDAI) O-Ring S632-150001
|
|
|
1-21
|
|
HCE-HHI (HYUNDAI) Connector 31N6-03100
|
|
|
1-20
|
|
HCE-HHI (HYUNDAI) O-Ring S631-018004
|
|
|
1-19
|
|
HCE-HHI (HYUNDAI) Bolt-Socket S109-060156
|
|
|
1-18
|
|
HCE-HHI (HYUNDAI) Sender-Temp 21EN-40100
|
|
|
1-17
|
|
HCE-HHI (HYUNDAI) Packing-Temp Sw 21EA-50260
|
|
|
1-14
|
|
HCE-HHI (HYUNDAI) Bolt-W/Washer S037-102522
|
|
|
1-132
|
|
HCE-HHI (HYUNDAI) Фильтр гидравлический 31E9-0126
|
|
|
1-131
|
|
HCE-HHI (HYUNDAI) Head 31E9-0127
|
|
|

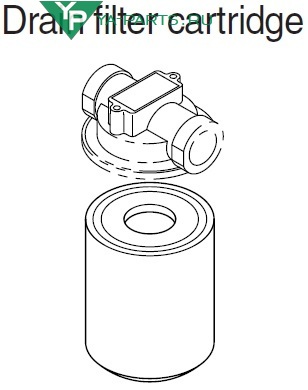

1-13
|
|
HCE-HHI (HYUNDAI) Filter-Spin 31E9-0086
|
|
|
2
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-200502
|
|
|
3
|
|
HCE-HHI (HYUNDAI) Bolt-Hex S017-200352
|
|
|
4
|
|
HCE-HHI (HYUNDAI) Washer-Hardened 91E6-60200
|
|
|
5
|
|
HCE-HHI (HYUNDAI) Shim(1.0t) 31N8-01300
|
|
